Uniden Grant AM/SSB with the MB8719 PLL

#319034

Post by rbodenbender »

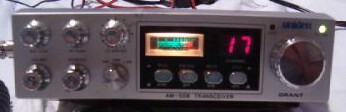

[ external image ]

general internet picture, not the exact radio i have. but it is the identical model though.

picked up a diamond in the ruft at a yard sale the other day. only paid a dollar for the radio with an external speaker as well. but, the radio needs a little work. it receives, but it sounds garbled. it will not xmit, and the RF meter is stuck halfway. the radio us unmodified and laid in a basement for many years. i know the MB8719 PLL chip is very very hard to find, and with a few low dollar parts (new RF caps and diodes) this radio could be a monster. i have read that this is one of the best AM/SSB rigs ever made by Uniden.

to the techs on here, what is a reasonable estimated cost to do the clarifier mod and channel mod, add the +10 kc switch and change the RF caps and do the shottkey receive mod? i know it needs more work than that, probably just something simple with the symptoms it is giving now. i have read that with the age of this radio, the RF caps can dry out and cause all kinds of problems with the Xmit and receive and basically renders the radio garbage.

i opened the radio, and it appears untouched. nothing cut on the board, no hacked wires, etc. if the radio was tuned and had the mods done, with it being an SSB unit, i would guess that it could be worth around the 150 buck mark. seeing how i only have a dollar tied up in the radio, i think it is work getting it repaired and running again. i may even have an external freq counter added as a good road map.

how many channels does jumping the chip add? is it one band below and one band above 11 meter? i know it would probably have to be realigned with it being sideband. im sure someone on here can do all that. im just wondering what a ballpark dollar amount might be.

thanks for any suggestions.

Rob
User avatar
TheCBDoctor
Sponsor
Sponsor
Posts: 2,823
Joined: March 13th, 2009, 2:54 pm
Handle: Rick
Real Name: Rick
Antenna: Wilson 2000
Radio: HR 2510
Contact:

#319088

Post by TheCBDoctor »

rbodenbender wrote:[ external image ]

general internet picture, not the exact radio i have. but it is the identical model though.

picked up a diamond in the ruft at a yard sale the other day. only paid a dollar for the radio with an external speaker as well. but, the radio needs a little work. it receives, but it sounds garbled. it will not xmit, and the RF meter is stuck halfway. the radio us unmodified and laid in a basement for many years. i know the MB8719 PLL chip is very very hard to find, and with a few low dollar parts (new RF caps and diodes) this radio could be a monster. i have read that this is one of the best AM/SSB rigs ever made by Uniden.

to the techs on here, what is a reasonable estimated cost to do the clarifier mod and channel mod, add the +10 kc switch and change the RF caps and do the shottkey receive mod? i know it needs more work than that, probably just something simple with the symptoms it is giving now. i have read that with the age of this radio, the RF caps can dry out and cause all kinds of problems with the Xmit and receive and basically renders the radio garbage.

i opened the radio, and it appears untouched. nothing cut on the board, no hacked wires, etc. if the radio was tuned and had the mods done, with it being an SSB unit, i would guess that it could be worth around the 150 buck mark. seeing how i only have a dollar tied up in the radio, i think it is work getting it repaired and running again. i may even have an external freq counter added as a good road map.

how many channels does jumping the chip add? is it one band below and one band above 11 meter? i know it would probably have to be realigned with it being sideband. im sure someone on here can do all that. im just wondering what a ballpark dollar amount might be.

thanks for any suggestions.

Rob
If the radio sat around for a while the first thing I would try is some contact cleaner on the CB/PA switch. That may get it to work on Tx. It also may have a bad electrolytic cap that dried out. I would say an estimate without benching it is $65 to $85 to do what you want it to do and get it working again.

Jumping out the MB-8719 will give you 26.8150 MHz on the low side to 28.0450 MHz on the upper side. Without further modification you will skip. 27.4150-42-43-44-46-49. They can be added using another switch placed the back.

PM me if you just want to get it working and we can go from there. Getting it working is the cheap part of working on the radio. The mods are something else. You want to keep it looking good and make it do the "special things" without doing a lot of drilling.

Respectfully,
Respectfully as always,

Rick
User avatar
rbodenbender
Skipshooter
Skipshooter
Posts: 283
Joined: June 13th, 2009, 8:38 pm
Handle: Bullet
Real Name: Rob
Antenna: K-40 trucker
Radio: Galaxy DX959
Contact:

#319092

Post by rbodenbender »

pm sent.
User avatar
voodoopriest
NEW DUCK
NEW DUCK
Posts: 3
Joined: January 22nd, 2015, 3:29 pm
Real Name: Artie

#367613

Post by voodoopriest »

Hi.How much just for the channles modification?Please let me know.Thanks.
User avatar
Bombero
Verified
Site Admin
Site Admin
Posts: 5,812
Joined: March 7th, 2009, 10:35 pm
Handle: Boogieman
Real Name: Bombero
Antenna: 2ft Wire hanger
Radio: RCI 2950 Mirage
Contact:

#367623

Post by Bombero »

voodoopriest wrote:Hi.How much just for the channles modification?Please let me know.Thanks.
Hey voodoopriest...

Most of the members on this site do their own work on their own equipment only.

For any channel mods...check cbtricks.com or just 'Google' it.

You could also check your area for a reputable CB tech that is will to work on your equipment.

Bombero
Official Moderator - CBRT Complaints Department
We encourage all users to support our sponsors. We believe our sponsors are the best out there.
Be sure to tell them you saw their name on CBRadioTalk.
Support our fine sponsors!


383 Boogieman


User avatar
MDYoungblood
Verified
Site Admin
Site Admin
Posts: 10,834
Joined: June 12th, 2010, 8:05 pm
Handle: MDYoungblood
Real Name: Gregory
Antenna: HyGain AV-6160
Radio: Icom IC-746 (non pro)
Contact:

#367672

Post by MDYoungblood »

Hello voodoopriest,
Welcome to the forum. Like Bombero said most of us do our own mods. If you have an unmodified Grant it is worth more unmodded than with anything that you do to it.

3's

Greg
